The 10.26-inch high-resolution screen has a good display effect, bright colors, and delicate picture texture.

The kit includes a vertical stand and suction cup stand, which can be adapted to more models. You can choose different installation methods according to your preference.

Built-in Carplay system: Use a USB data cable to connect, Connect with a mobile phone to access mobile phone contacts, notifications, map navigation, music, video, and other information, and also implement voice control.

Support wireless CarPlay function, can connect to the host through mobile phone Bluetooth and WiFi, and use iPhone CarPlay function. You can view navigation, listen to songs, etc. through CarPlay

Support the wireless Android AUTO function, you can connect to the host through the Bluetooth and WiFi of the mobile phone and use the AUTO function of the Android mobile phone.

FM transmitter function, through this function, you can transmit the music or other sound of the host to the original car audio system.

With the card reading function, insert the memory card into the host to watch the videos stored in the card.

Auto reverse Parking view：When the car is in Reverse Gear, this car DVD will automatically switch to the backup camera image view with the parking line.

USB function: Support USB(U disk)and USB charging, you can download music or movies, which are your favorite, and play them on this unit.

Intelligent voice: Intelligent voice can directly control the player to open and close the mobile phone, open and close navigation, make calls, and other functions through the voice, so as to better liberate your hands and realize safe driving;

Support DVR input function,easy to control DVR on the display screen.(DVR is optional, need to buy DVR seperately)

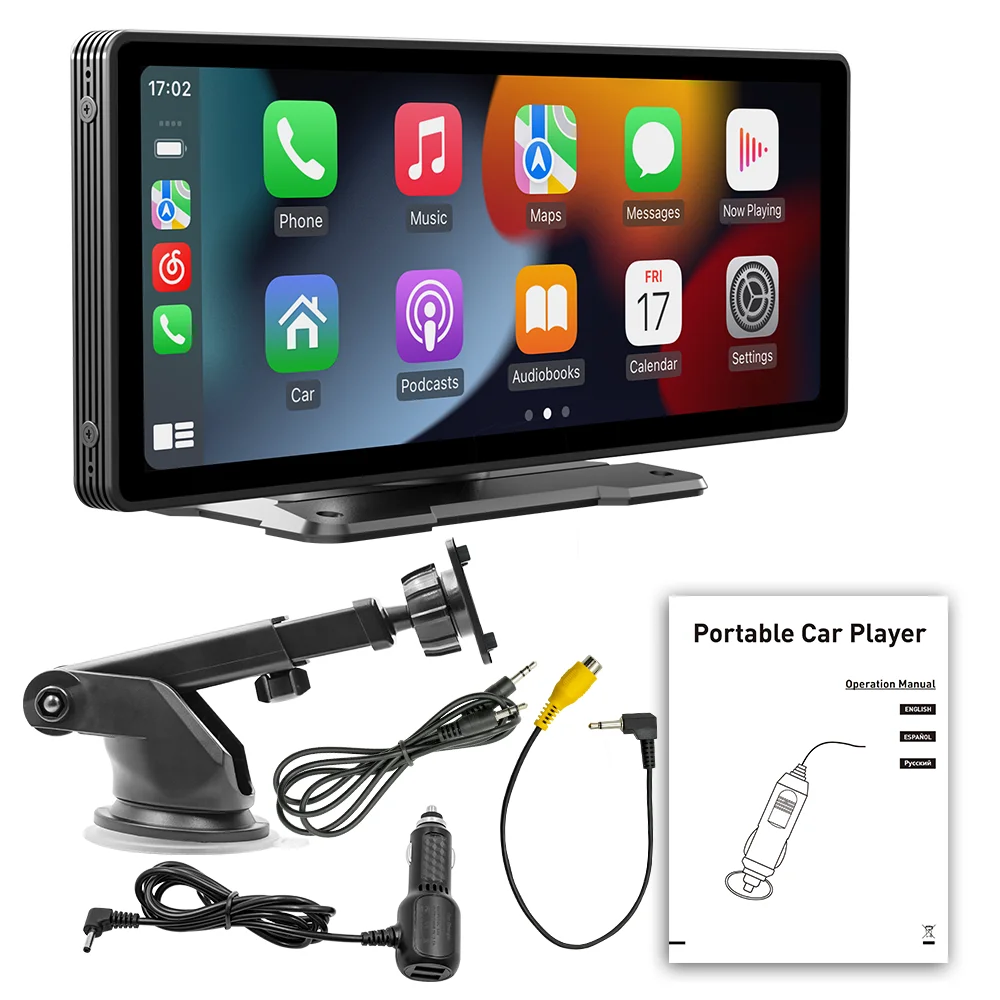

Accessories

1×1 Host

1×1 Manual

1×1 Cigarette lighter power cord (with USB charging port)

1×2 Installation bracket

1×1 Reverse video cable

(accessories, manuals, and packaging will be updated from time to time, subject to actual receipt of the goods)

Basic parameters

Model : B5303

Type : Portable car MP5

System : Allwinner melis system

Software solution : F133

Radio transmission frequency : 87.50-108MHz

Radio transmitter : IC AB5301B

Power amplifier : IC NS4250

Output power : built-in 1W speaker

Working voltage : 12~30V

Working temperature : -10~60℃

Bluetooth : version 5.0 (default name: SWL-BT)



Performance parameters

CPU : F133

Running memory : 1Gbit DRAM

Display resolution : 600×1600

Screen size : 10.26 inches



Size parameters

Installation size :65x65MM 120x68MM

Face case size : 245x98MM

Host depth : 23MM

Color box size : 287x116x143mm (color box)

Full box size : 595x491x310mm

Number of units per box : 16



Weight parameters

Single unit weight : 0.82KG

Net weight of the whole box : 13.12KG

The gross weight of the whole box : 14.43KG



Function parameter

Mobile Internet :support

Reversing image : support

Play video warning : support

Built-in speaker : support

Reset key :  supported

TF card : supported

USB interface USB2.0 reading



AUX port parameters

Audio output support (3.5MM)

AUX audio input support (3.5MM)

Reverse video input support (2.5MM)



Format parameters

Audio format : MP3/AAC/APE/OGG/M4A/RA/WAV

Video format : H263/H264/H265/DIVX HD/AVI/FLV/MKV/MPEG/MP4/WMV9/VC/ASF/TS/QT

Image format : JPEG/PNG/BMP/GIF/TIFF



Language parameters

English, Chinese, Spanish, Portuguese, Russian, German, French, Polish, Turkish, Arabic, Hebrew, Italian, Czech, Japanese, Korean
